Sizing

Examples

Width base and percentage units

.pf-v5-u-w-0
.pf-v5-u-w-25
.pf-v5-u-w-50
.pf-v5-u-w-75
.pf-v5-u-w-100
.pf-v5-u-w-initial (auto)
.pf-v5-u-w-inherit

Usage

Breakpoint is optional. Breakpoints: base (no breakpoint value), -on-sm, -on-md, -on-lg, and -on-xl. Example .pf-v5-u-w-initial-on-lg

Class
Applied to
Outcome
.pf-v5-u-w-initial{-on-[breakpoint]}
*
Sets width: initial (auto)
.pf-v5-u-w-inherit{-on-[breakpoint]}
*
Sets width: inherit
.pf-v5-u-w-0{-on-[breakpoint]}
*
Sets width: 0%
.pf-v5-u-w-25{-on-[breakpoint]}
*
Sets width: 25%
.pf-v5-u-w-33{-on-[breakpoint]}
*
Sets width: calc(100% / 3)
.pf-v5-u-w-50{-on-[breakpoint]}
*
Sets width: 50%
.pf-v5-u-w-66{-on-[breakpoint]}
*
Sets width: calc(100% / 3 * 2)
.pf-v5-u-w-75{-on-[breakpoint]}
*
Sets width: 75%
.pf-v5-u-w-100{-on-[breakpoint]}
*
Sets width: 100%

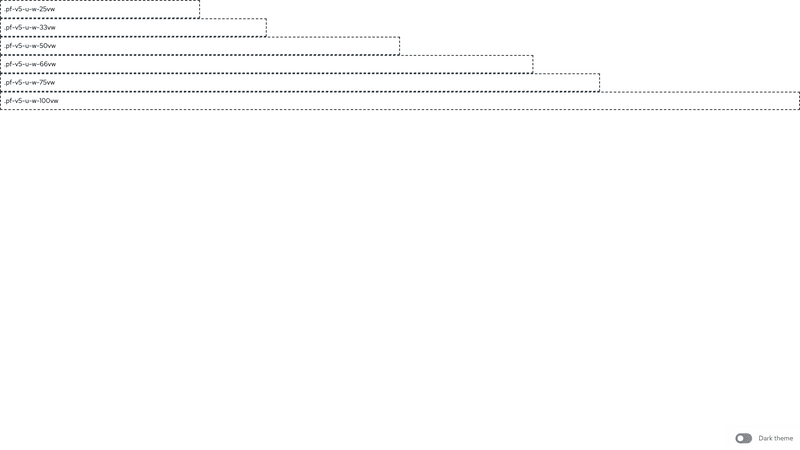

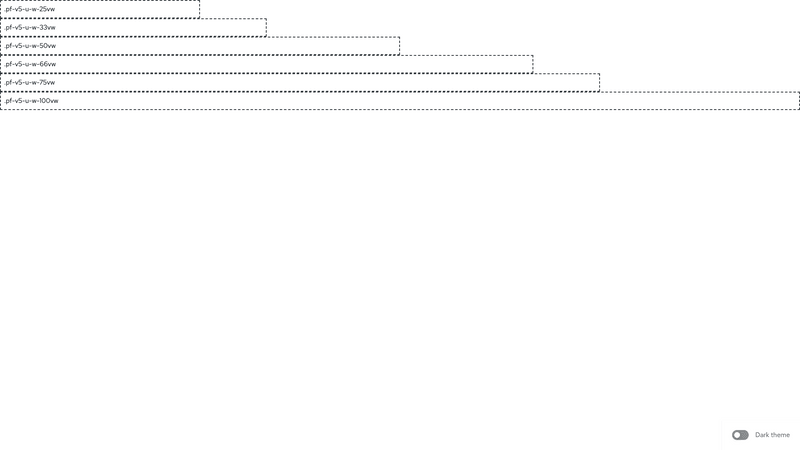

Width viewport units

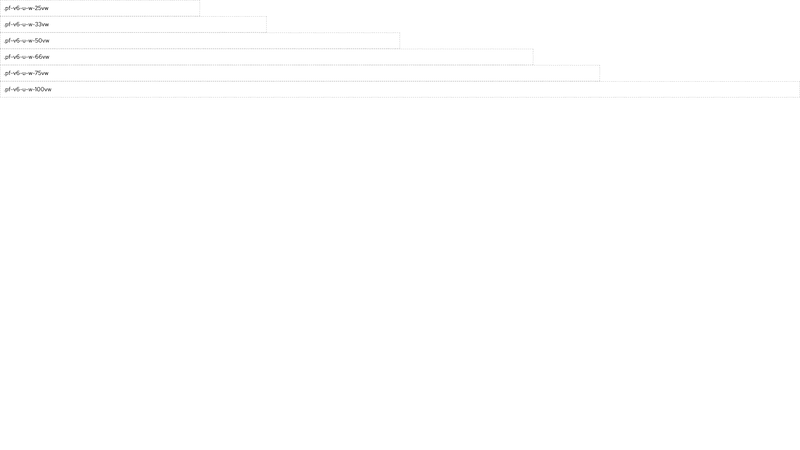

Width viewport units screenshot

Usage

Breakpoint is optional. Breakpoints: base (no breakpoint value), -on-sm, -on-md, -on-lg, -on-xl. Example .pf-v5-u-w-25vw-on-lg

Class
Applied to
Outcome
.pf-v5-u-w-25vw{-on-[breakpoint]}
*
Sets width: 25vw
.pf-v5-u-w-33vw{-on-[breakpoint]}
*
Sets width: calc(100vw / 3)
.pf-v5-u-w-50vw{-on-[breakpoint]}
*
Sets width: 50vw
.pf-v5-u-w-66vw{-on-[breakpoint]}
*
Sets width: calc(100vw / 3 * 2)
.pf-v5-u-w-75vw{-on-[breakpoint]}
*
Sets width: 75vw
.pf-v5-u-w-100vw{-on-[breakpoint]}
*
Sets width: 100vw

Height base and percentage units

.pf-v5-u-h-0
.pf-v5-u-h-25
.pf-v5-u-h-50
.pf-v5-u-h-75
.pf-v5-u-h-100
.pf-v5-u-h-initial (auto)
.pf-v5-u-h-inherit

Usage

Breakpoint is optional. Breakpoints: base (no breakpoint value), -on-sm, -on-md, -on-lg, -on-xl. Example .pf-v5-u-h-initial-on-lg

Class
Applied to
Outcome
.pf-v5-u-h-initial{-on-[breakpoint]}
*
Sets height: initial (auto)
.pf-v5-u-h-inherit{-on-[breakpoint]}
*
Sets height: inherit
.pf-v5-u-h-0{-on-[breakpoint]}
*
Sets height: 0%
.pf-v5-u-h-25{-on-[breakpoint]}
*
Sets height: 25%
.pf-v5-u-h-33{-on-[breakpoint]}
*
Sets height: calc(100% / 3)
.pf-v5-u-h-50{-on-[breakpoint]}
*
Sets height: 50%
.pf-v5-u-h-66{-on-[breakpoint]}
*
Sets height: calc(100% / 3 * 2)
.pf-v5-u-h-75{-on-[breakpoint]}
*
Sets height: 75%
.pf-v5-u-h-100{-on-[breakpoint]}
*
Sets height: 100%

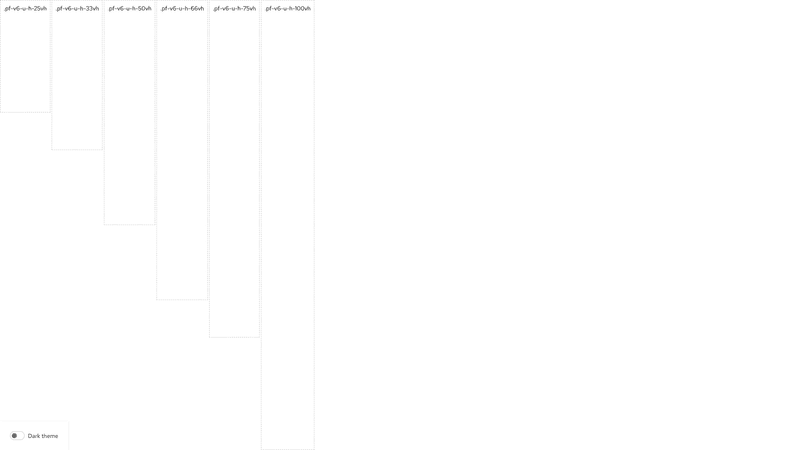

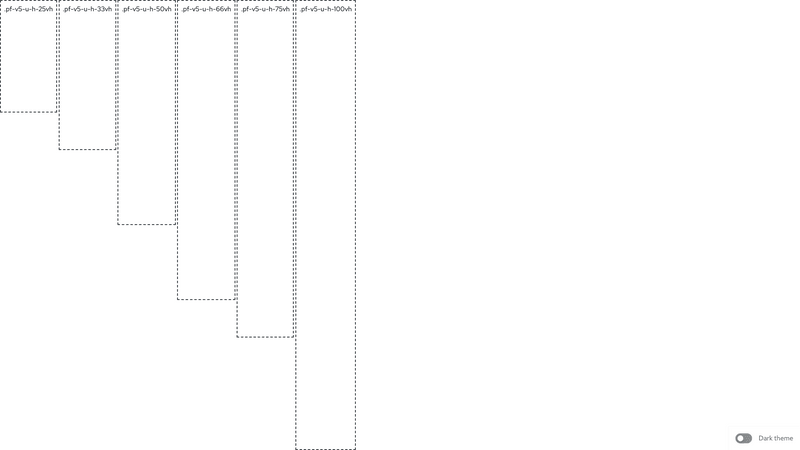

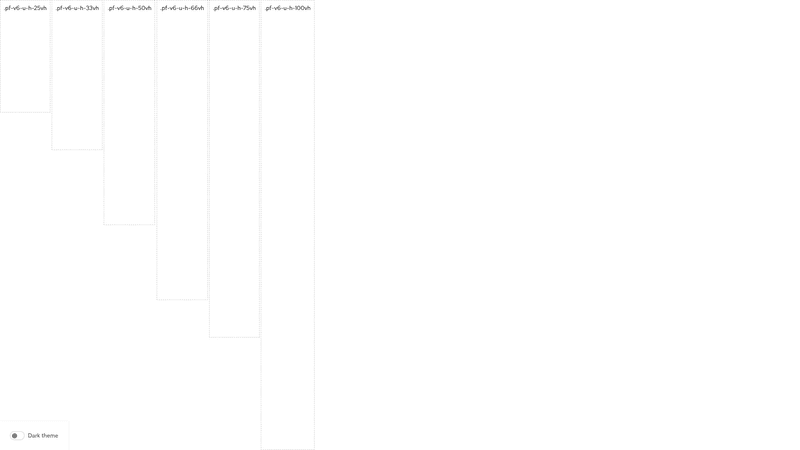

Height viewport units

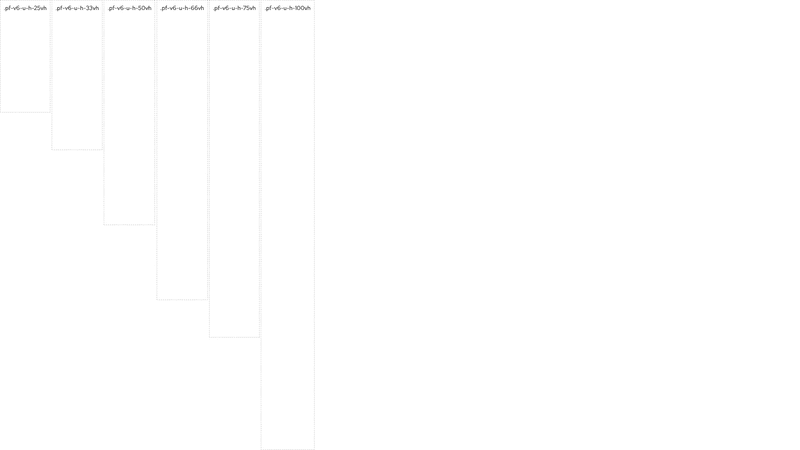

Height viewport units screenshot

Usage

Breakpoint is optional. Breakpoints: base (no breakpoint value), -on-sm, -on-md, -on-lg, -on-xl. Example .pf-v5-u-h-25vh-on-lg

Class
Applied to
Outcome
.pf-v5-u-h-25vh{-on-[breakpoint]}
*
Sets height: 25vh
.pf-v5-u-h-33vh{-on-[breakpoint]}
*
Sets height: calc(100vh / 3)
.pf-v5-u-h-50vh{-on-[breakpoint]}
*
Sets height: 50vh
.pf-v5-u-h-66vh{-on-[breakpoint]}
*
Sets height: calc(100vh / 3 * 2)
.pf-v5-u-h-75vh{-on-[breakpoint]}
*
Sets height: 75vh
.pf-v5-u-h-100vh{-on-[breakpoint]}
*
Sets height: 100vh

Min width

Min-width 50ch example

Max width

Max-width 50ch example

Min and max width

Min-width 30ch, max-width 50ch example

Responsive width control

Min-width 20ch, max-width 30ch, max-width-on-md 50ch, max-width-on-xl 70ch example

Usage

Class
Applied to
Outcome
.pf-v5-u-min-width
*
Sets min-width: var(--pf-v5-u-min-width--MinWidth{-on-[breakpoint]}).
.pf-v5-u-max-width
*
Sets min-width: var(--pf-v5-u-max-width--MaxWidth{-on-[breakpoint]}).

Breakpoint is optional. Breakpoints: base (no breakpoint value), -on-sm, -on-md, -on-lg, -on-xl. Example --pf-v5-u-min-width--MinWidth-on-lg

Custom property
Applied to
Outcome
--pf-v5-u-min-width--MinWidth{-on-[breakpoint]}: {width}
.pf-v5-u-min-width
Modifies the min width custom property.
--pf-v5-u-max-width--MaxWidth{-on-[breakpoint]}: {width}
.pf-v5-u-max-width
Modifies the max width custom property.

Min height

Min-height 50ch example

Max height

Max-height 50ch example

Min and max height

Min-height 30ch, max-height 50ch example

Responsive height control

Min-height 20ch, max-height 30ch, max-height-on-md 50ch, max-height-on-xl 70ch example

Usage

Class
Applied to
Outcome
.pf-v5-u-min-height
*
Sets min-height: var(--pf-v5-u-min-height--MinHeight{-on-[breakpoint]}).
.pf-v5-u-max-height
*
Sets max-height: var(--pf-v5-u-max-height--MaxHeight{-on-[breakpoint]}).

Breakpoint is optional. Breakpoints: base (no breakpoint value), -on-sm, -on-md, -on-lg, -on-xl. Example --pf-v5-u-min-height--MinHeight-on-lg

Custom property
Applied to
Outcome
--pf-v5-u-min-height--MinHeight{-on-[breakpoint]}: {height}
.pf-v5-u-min-height
Modifies the min height custom property.
--pf-v5-u-max-height--MaxHeight{-on-[breakpoint]}: {height}
.pf-v5-u-max-height
Modifies the max height custom property.
